NeoPDF ships with a cross-platform desktop application built with Tauri that provides an interactive graphical interface for exploring and plotting PDF sets.

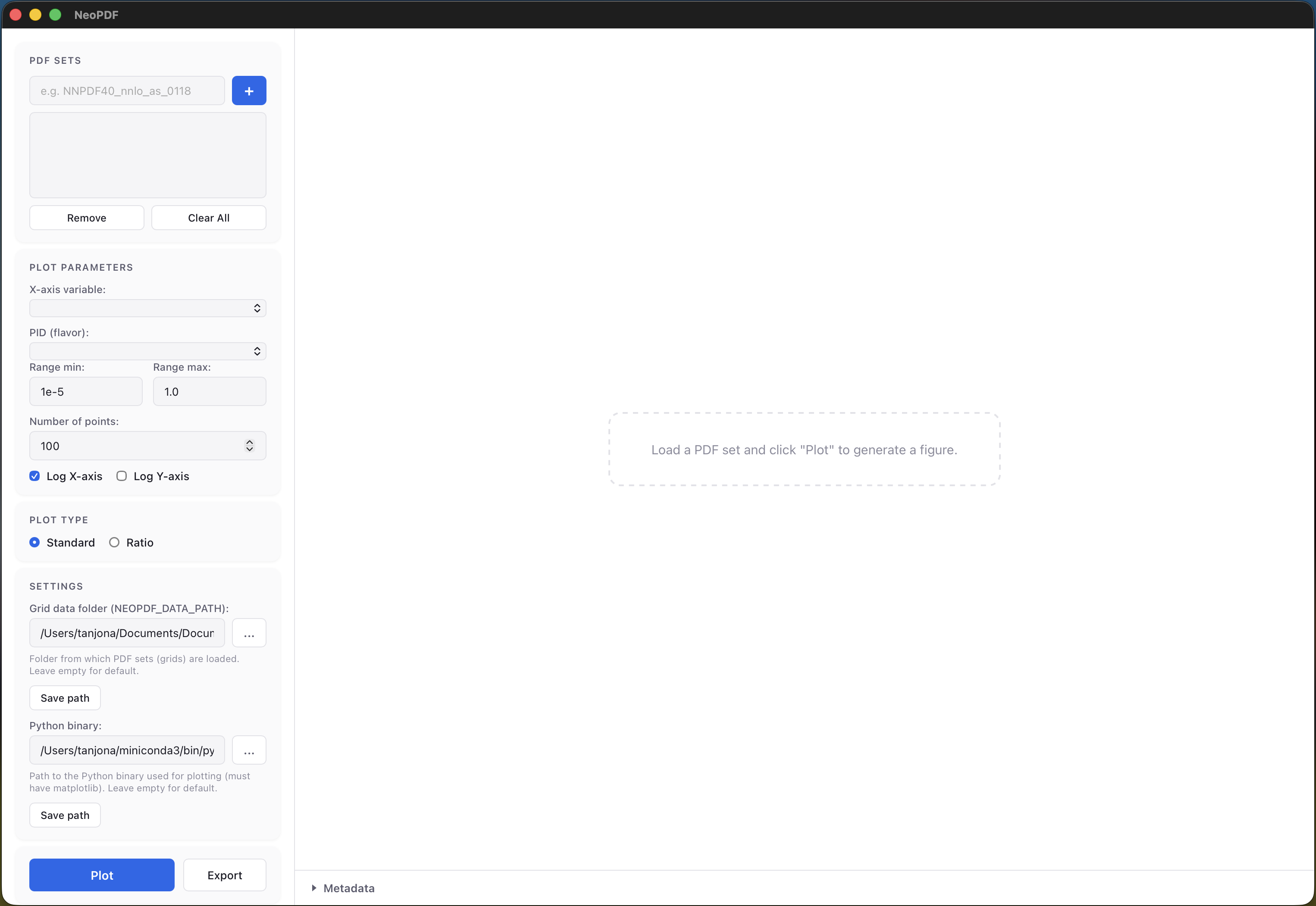

NeoPDF GUI

Loading PDF Sets

To load a PDF set, enter the name of the PDF set (e.g. NNPDF40_nnlo_as_0118) in the text field at the top and click the + button to load it. Multiple sets can be loaded simultaneously and will appear in the list below. Select one or more sets to compare them on the same plot.

Use Remove to unload the selected sets or Clear All to start fresh.

Plot Parameters

Once a set is loaded, the GUI automatically detects the active parameter dimensions depending on the type of the distribution:

  • x-axis variable — choose which variable to sweep (e.g. x, Q2, kT, etc.)
  • PID (flavor) — select the parton flavor to plot (gluon, u, d, s, ...)
  • Fixed variables — set constant values for any remaining active dimensions
  • Range min / max — define the sweep range for the x-axis variable
  • Number of points — control the sampling density
  • Log x-axis / Log y-axis — toggle logarithmic scales

Plot Types

The application provides two different types of plots: standard and ratio. The former plots the PDF value (with uncertainty bands) as a function of the chosen variable while the latter divides all sets by a selected reference set, useful for comparing shapes and uncertainties

Click Plot to generate the figure. The plot appears in the right panel as a high-resolution PNG rendered via matplotlib.

Exporting

Click Export to save the current plot to disk. Supported formats include PNG, PDF, and SVG.

Settings

The Settings section at the bottom of the controls panel lets you configure:

  • Grid data folder (NEOPDF_DATA_PATH) — the directory from which PDF set grids are loaded. Leave empty to use the default location (~/.local/share/neopdf).
  • Python binary — path to the Python interpreter used for matplotlib plotting. The Python environment must have matplotlib installed. Leave empty to use the system default (python3).

Both settings are persisted across sessions.
